PFERD cut-off wheels are engineered to provide excellent service life, and smooth, aggressive cutting action with a consistently level unmatched in the industry. Manufactured with heavy duty fiberglass reinforcement for superior strength and lateral stability, PFERD cut-off wheels conform to U.S. and international safety standards. Choose 3/32 and 1/8 PFERD cut-off wheels for universal cut-off needs on all metals.



Depressed Center Cut-Off Wheels - Type 27 for Steel

Maxwell Products has a complete range of Depressed Center Cut-Off Wheels for cut-off use on angle grinders. Diameter ranges from 4" through 9", with selections available for cutting steel, stainless steel, masonry products, aluminum, titanium and much more.

EDP Diameter Thickness (Inches) Arbor Hole / Thread Size Grit Max. RPM
PFD-63102 4 3/32 5/8 46 15,300
PFD-63101 4 1/8 3/8 46 15,200
PFD-63103 4-1/2 3/32 7/8 46 13,300
PFD-63114 4-1/2 3/32 5/8-11 46 13,300
PFD-63104 4-1/2 1/8 7/8 46 13,300
PFD-63115 4-1/2 1/8 5/8-11 46 13,300
PFD-63105 5 3/32 7/8 24 12,200
PFD-63116 5 3/32 5/8-11 24 12,200
PFD-63106 5 1/8 7/8 30 12,200
PFD-63117 5 1/8 5/8-11 24 12,200
PFD-63107 6 1/8 7/8 24 10,200
PFD-63119 6 1/8 5/8-11 24 10,200
PFD-63109 7 1/8 7/8 24 8,600
PFD-63112 7 1/8 5/8-11 24 8,600
PFD-63111 9 1/8 7/8 24 6,600
PFD-63113 9 1/8 5/8-11 24 6,600


































 PFERD produces a complete selection of depressed center rough grinding wheels to meet the most demanding applications. For 3" through 9" diameter for electric and pneumatic angle grinders. Available in Aluminum Oxide, Silicon Carbide and Zirconia grain types. Wheel labels are color coded for easy product selection to help ensure the right wheel is on hand based on your power tool, material and application.

Rough grinding wheels manufactured with Aluminum Oxide for grinding ferrous and non-ferrous metals. Available in a variety of styles to match your power tool, work piece material and application.

High performance, long life grinding wheel for stainless steels and high temperature alloys. Smooth grinding action and fast removal rates are achieved with minimal contact pressure.
Also suitable for carbon steel and all ferrous metals.

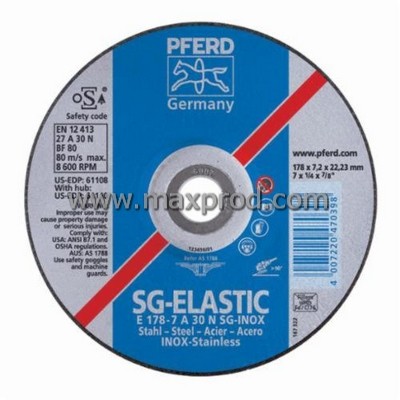

Depressed Center Grinding (Type 27) - Aluminum Oxide - A-SG INOX: Premium Performance - Steel, Stainless

High performance, long life grinding wheel for stainless steels and high temperature alloys. Smooth grinding action and fast removal rates are achieved with minimal contact pressure.
Also suitable for carbon steel and all ferrous metals.

EDP
Diameter
Thickness (Inches)
Arbor Hole / Thread Size
Grit
Max. RPM

PFD-61100
4
1/4
3/8
30
15,300

PFD-61103

4
1/4
5/8
30
15,300
PFD-61104
4-1/2
1/8
7/8
30
13,300
PFD-61113
4-1/2
1/8
5/8-11
30
13,300
PFD-61105
4-1/2
1/4
7/8
30
13,300
PFD-61114
4-1/2
1/4
5/8-11
30
13,300
PFD-61106
5
1/4
7/8
30
12,200
PFD-61111
5
1/4
5/8-11
30
12,200
PFD-61107
6
1/4
7/8
30
10,200
PFD-61116
6
1/4
5/8-11
30
10,200
PFD-61108
7
1/4
7/8
30
8,600
PFD-61110
7
1/4
5/8-11
30
8,600
PFD-61109
9
1/4
7/8
30
6,600
PFD-61112
9
1/4
5/8-11
30
6,600
